Adding central air will not overload most Winnipeg panels, but it can on an older or fully loaded one. A typical central air conditioner runs on its own 240-volt circuit and draws roughly 15 to 35 amps depending on its size. Whether your panel can carry that comes down to its total spare capacity, not simply whether you have a free breaker slot.
That distinction is where the real answer lives, and it is the part most homeowners do not hear. A panel can have empty slots and still be near its limit, or be physically full and still have headroom on paper. Here is how to tell whether your home needs a panel upgrade before central air, and how to know if it does not.
Only if the air conditioner’s load pushes your service past what it can carry, which is not the case for most homes. Central air adds one large continuous load on a dedicated circuit. On a home with a 200-amp service, or a 100-amp service that is not already heavily loaded, there is usually room for it. On a 60-amp service, an old fuse box, or a 100-amp panel that is already running an electric range and other heavy loads, it can be the load that tips the balance.
The key, as one industry guide puts it, is the panel’s total capacity. A free slot only tells you there is physical room for a breaker, and says nothing about whether the service behind it can carry another 15 to 35 amps.
A central air conditioner runs on a dedicated 240-volt circuit, and the size of that circuit depends on the unit. The exact figures are printed on the condenser’s nameplate as its minimum circuit ampacity and maximum breaker size, but the table gives the typical range for common residential units.
| Central air size | Typical dedicated circuit |
|---|---|
| About 2 tons (smaller home) | 20 to 30 amp, 240-volt |
| About 3 tons (typical Winnipeg home) | 30 to 40 amp, 240-volt |
| About 4 tons (larger home) | 40 to 50 amp, 240-volt |
The job has two trades. Your HVAC installer sizes and installs the air conditioner itself, and we handle the electrical side, the dedicated circuit and the disconnect at the unit, plus any panel work if the service needs it. Newer inverter-style units tend to draw less at startup than older single-stage ones, which can make a difference on a tight panel.
You are most likely to need a panel upgrade when your home has a small or older service, and least likely when it has a modern 200-amp service with room to spare. The pattern we see lines up with how the home is set up. A home with gas heat, a 100 or 200-amp panel, and average loads usually has the headroom for central air without any panel work. A home with a small or older service, or a 100-amp panel already loaded with electric heat, is where an electrical panel upgrade often comes into the picture.
This is exactly the kind of decision our guide on 100 amp versus 200 amp service walks through, since adding central air is one of the common loads that tips a Winnipeg home toward 200-amp service. We see it often in the older homes around River Heights and Crescentwood, where a character home on its original service is having central air added for the first time.
The reliable way to know is a load calculation, which adds up what your home actually draws and compares it against your service rating. As a quick gauge, the 80-percent rule says a panel should not carry a continuous load beyond about 80 percent of its rating, so if your existing major loads plus the air conditioner sit comfortably under that, you are likely fine. If they do not, the air conditioner is the load that exposes it.
There are also signs a panel is already near its limit before you add anything, like breakers that trip when several big appliances run together, which our guide on the signs your panel needs an upgrade covers. Either way, the electrical work for central air is permitted and inspected, and a quick assessment by a licensed electrician, which the Electrical Safety Authority recommends before adding a major load, tells you for certain where you stand. If an upgrade is needed, it is permitted through the City of Winnipeg and, on a service upgrade, coordinated with Manitoba Hydro.
Not usually, but sometimes. A home with a 200-amp service, or a 100-amp service that is not heavily loaded, generally has room for central air without a panel upgrade. A home with a small or older service, such as a 60-amp panel or a fuse box, is where an upgrade is often needed. A load calculation is what settles it for your specific home.
A typical residential central air conditioner draws roughly 15 to 35 amps on a dedicated 240-volt circuit, depending on its size, with the exact figure on the unit’s nameplate. A smaller two-ton unit sits at the lower end and a larger four-ton unit toward the higher end. That is the load your panel has to have capacity for, on top of everything else the home runs.

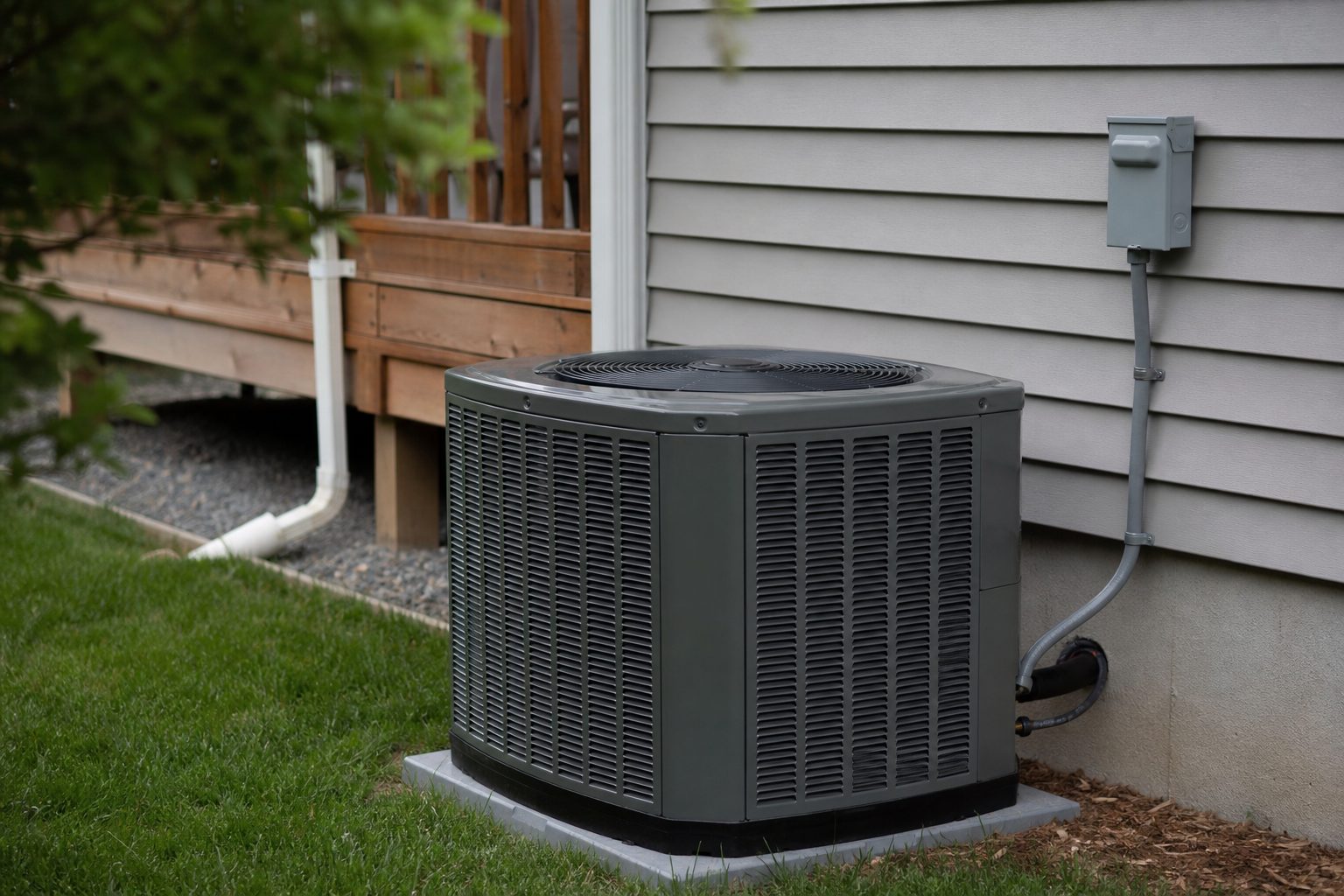

Yes. Central air runs on its own dedicated 240-volt circuit with a disconnect at the outdoor unit, separate from your other circuits. It does not share a circuit with other loads, which is part of why adding it draws on your panel’s spare capacity to run.
It will only overload a panel that is already near its capacity, which is not most homes. On a service with headroom, central air is a normal addition. On a small or fully loaded panel, it can be the load that pushes the service past its limit, which is why a load calculation is worth doing before the unit goes in.
A load calculation by a licensed electrician is the certain way, comparing your home’s real draw against your service rating using the 80-percent rule. Signs your panel is already near its limit, like breakers tripping when big appliances run together, are a clue it may not have room. A quick assessment before you buy the unit avoids a surprise mid-install.
Before you add central air, we can run a load calculation and tell you plainly whether your panel has room or needs an upgrade first. Learn more about our electrical panel upgrade service.
